Commodore Wall Mount Cascade

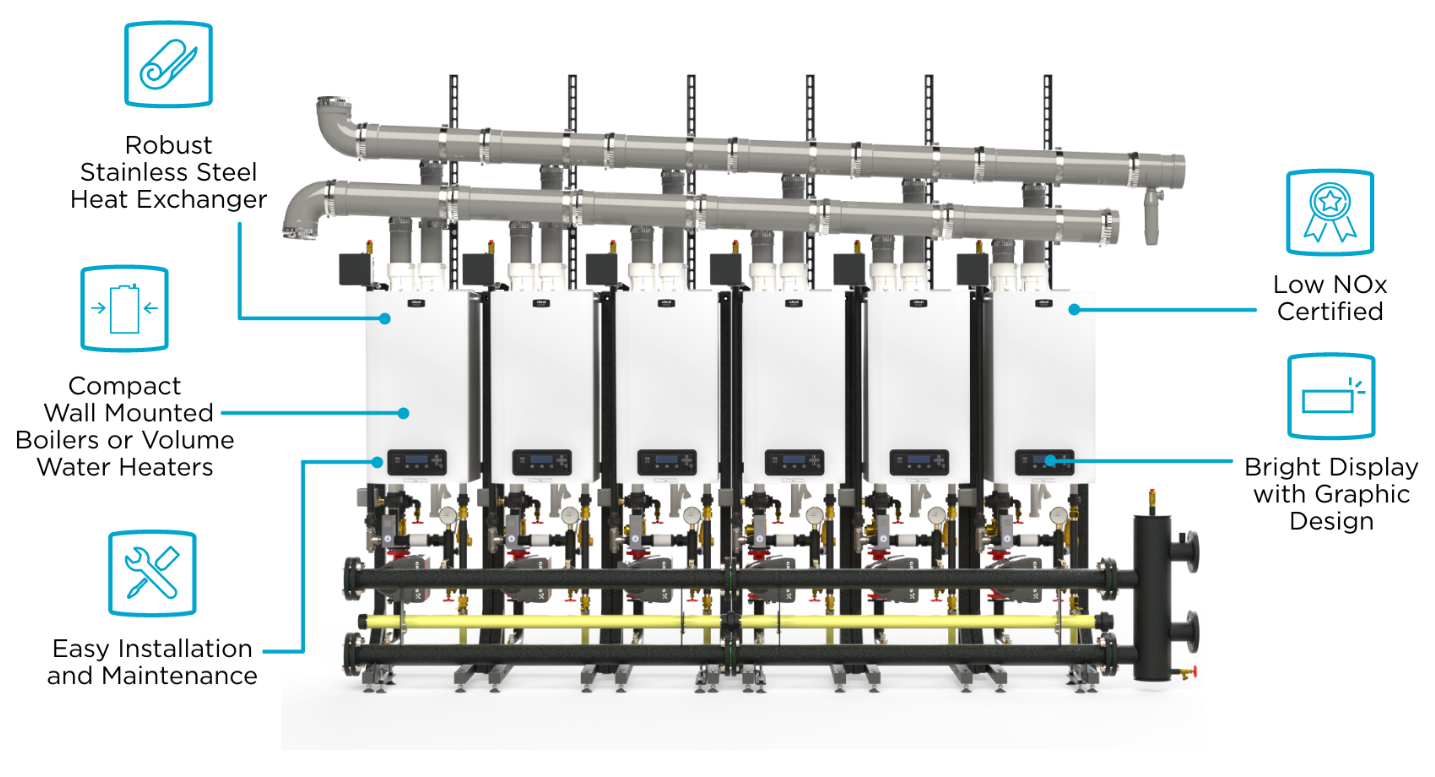

Our latest product innovation, the Ideal match for commercial needs. From easy install to long-lasting reliability, it’s the trusted commercial boiler. This trusted commercial boiler cascades up to six boilers on racking and the configuration allows for quick installation. Each Commodore Wall Mount Boiler comes loaded with features such as: a robust stainless steel heat exchanger, modulation up to 39:1, modbus connection as standard and easy-to-read error history. Sizes are available in 299, 399, 470 and 500 MBH.

Energy Saving Rebates

Warranty WARRANTY

The Ideal Advantage Industry Leading Warranty Program | Standard – 2-year parts and 10-year primary heat exchanger warranty. | Plus – 5-year parts, 2-year labor allowance, and 10-year primary heat exchanger warranty with registration. | Elite – 6-year parts, 3-years labor and 12-year heat exchanger warranty offered with registration, combustion analysis and hydronic system treatment.

  • Best Warranty
  • Best Warranty
  • Best Warranty
DETAILS

  • Models Rang From 299 to 500 MBH

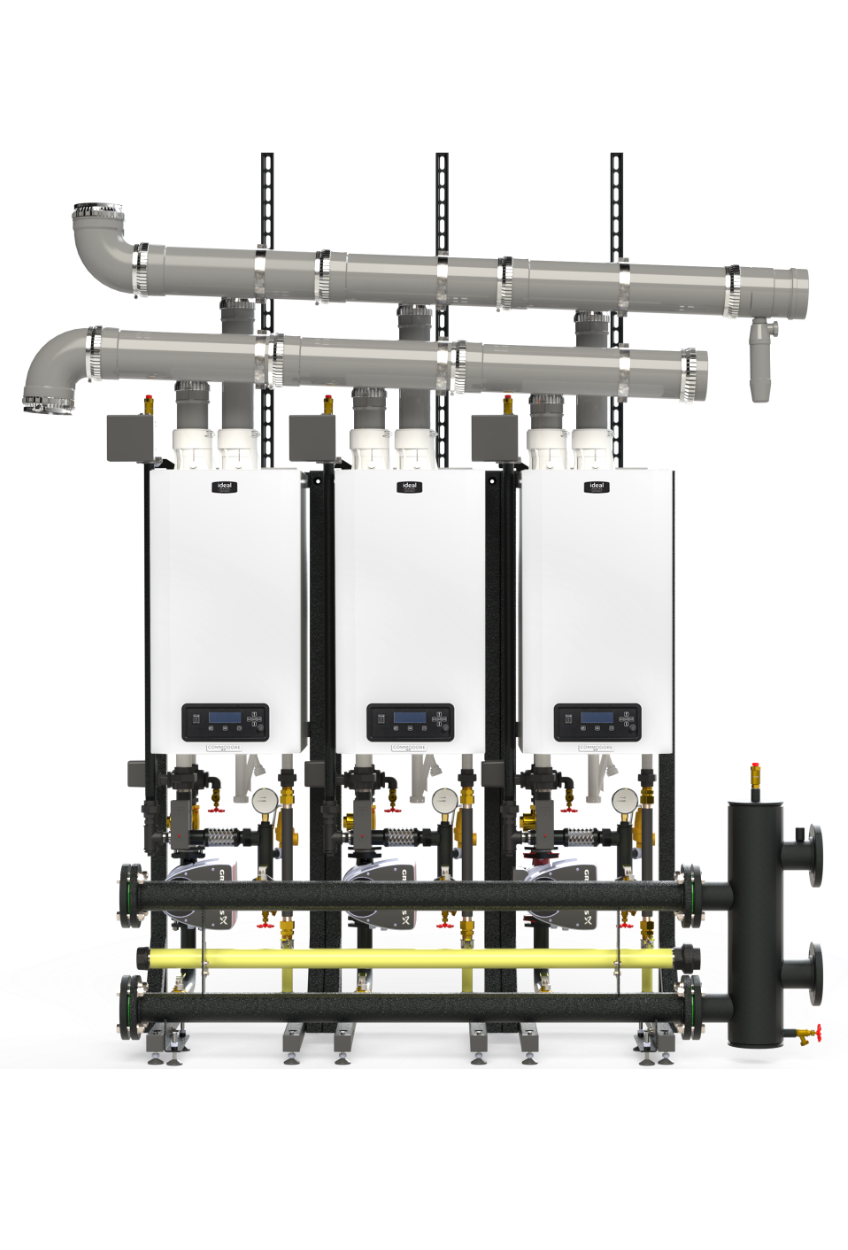

  • Cascade Up To 6 Boilers On Racking

  • Configured Racking For Quick Install

  • Modulation Up To 39:1

  • Racking Designed For Small Footprints

  • Pump Kits Available

Videos

Model Comparison Model Comparison

Models *# of BoilersTotal Input MBH **Total Output MBHDepth (Rack System Only)Width (Rack System Only)Weight (lbs.) (Rack System Only)Width (Rack +LLH)Weight (lbs.) (Rack +LLHModels LLH ***

Performance Specs (3" Header)

  • RS0600BL2D3
  • (2) 299
  • 598
  • 578
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS0800BL2D3
  • (2) 399
  • 798
  • 762
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS0900BL3D3
  • (3) 299
  • 897
  • 867
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS0940BL2D3
  • (2) 470
  • 940
  • 890
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS1000BL2D3
  • (2) 500
  • 1,000
  • 936
  • 27"
  • 43"
  • 325
  • 58"
  • 410
  • INEXC LLH 3"
  • RS1200BL4D3
  • (4) 299
  • 1,196
  • 1,156
  • 27"
  • 86"
  • 650
  • 101"
  • 735
  • INEXC LLH 3"
  • RS1200BL3D3
  • (3) 399
  • 1,197
  • 1,143
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS1410BL3D3
  • (3) 470
  • 1,410
  • 1,335
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS1500BL5D3
  • (5) 299
  • 1,495
  • 1,445
  • 27"
  • 108"
  • 800
  • 123"
  • 885
  • INEXC LLH 3"
  • RS1500BL3D3
  • (3) 500
  • 1,500
  • 1,404
  • 27"
  • 65"
  • 475
  • 80"
  • 560
  • INEXC LLH 3"
  • RS1600BL4D3
  • (4) 399
  • 1,596
  • 1,524
  • 27"
  • 86"
  • 650
  • 101"
  • 735
  • INEXC LLH 3"
  • RS1800BL6D3
  • (6) 299
  • 1,794
  • 1,734
  • 27"
  • 130"
  • 950
  • 145"
  • 1,035
  • INEXC LLH 3"

Performance Specs (4" Header)

  • RS1880BL4D4
  • (4) 470
  • 1,880
  • 1,780
  • 28"
  • 86"
  • 770
  • 101"
  • 885
  • INEXC LLH 4"
  • RS2000BL4D4
  • (4) 500
  • 2,000
  • 1,872
  • 28"
  • 86"
  • 770
  • 101"
  • 885
  • INEXC LLH 4"
  • RS2000BL5D4
  • (5) 399
  • 1,995
  • 1,905
  • 28"
  • 108"
  • 950
  • 123"
  • 1,065
  • INEXC LLH 4"
  • RS2350BL5D4
  • (5) 470
  • 2,350
  • 2,225
  • 28"
  • 108"
  • 950
  • 123"
  • 1,065
  • INEXC LLH 4"
  • RS2400BL6D4
  • (6) 399
  • 2,394
  • 2,286
  • 28"
  • 120"
  • 1,130
  • 145"
  • 1,245
  • INEXC LLH 4"
  • RS2500BL5D4
  • (5) 500
  • 2,500
  • 2,340
  • 28"
  • 108"
  • 950
  • 123"
  • 1,065
  • INEXC LLH 4"
  • RS2820BL6D4
  • (6) 470
  • 2,820
  • 2,670
  • 28"
  • 130"
  • 1,130
  • 145"
  • 1,245
  • INEXC LLH 4"
  • RS3000BL6D4
  • (6) 500
  • 3,000
  • 2,808
  • 28"
  • 130"
  • 1,130
  • 145"
  • 1,245
  • INEXC LLH 4"

* Height of Rack is 66” and increases to 75” w/ installed optional LWCO Standpipe accessory Rack system is based on 30ΔT with a maximum velocity of 5.21 ft/s

** Boiler Model / Input Minimum MBH - CB299:46 / CB399:72 / CB470:83 / CB500:83

*** Optional Matched Low Loss Header
